Lumenier ELITE PRO 100A V2 6-12S BLHeli_32 4-in-1 ESC

• New more robust 16V 2A BEC circuit. Handles voltage spikes without issue!
• Improved heatsink design for optimized cooling and easier mounting

• Supports Dshot300, Dshot600, Dshot1200, MultiShot, OneShot, and normal PPM 1-2us
• The one-sided Mosfet design reduces noise and provides better heat dissipation
• Superb PCB circuit design and 8oz thick copper ensures high-current capability
• Cortex M4 32-bit processor runs with 120M Hz frequency
• High-voltage low resistance 100V, 1.5mΩ Mosfet
• 30.5×30.5m and 86x66mm Mounting Patterns
• Supports High Demag Compensation
• 16V 2A BEC onboard to power flight controller
• 12S High-voltage support (52V)
• Supports Bidirectional + Dshot
• Optimized BLHeli_32 Firmware
• Supports PWM 8-48kHz

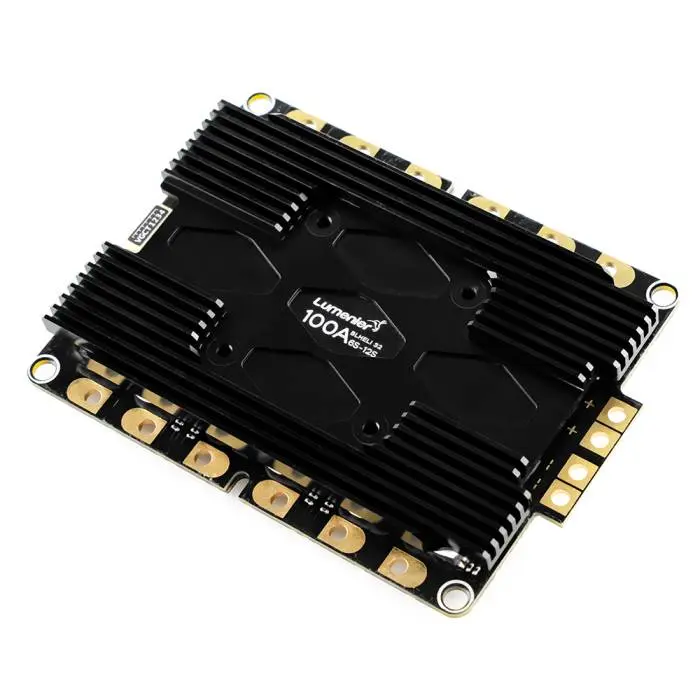

HIGH PERFORMANCE CUSTOM HEATSINK

The custom heatsink design provides improved heat dissipation making this ESC a perfect choice for high power needs found in Cinelifters, large drones, and high-performance racing drones. The heatsink effectively cools the ESC allowing for reliable operation even in challenging environments.

BLHELI_32 FIRMWARE AND LIVE TELEMETRY

The Lumenier ELITE PRO 100A 12S BLHeli_32 4-in-1 ESC is a 32-bit ESC running the latest generation BLHeli_32 firmware. The 32-bit architecture enables the ESC to run at incredible speeds resulting in better performance, faster input signals, and lower latency compared to older 8-bit ESCs. This ESC also features a live telemetry connection for more advanced flight controllers, as well as a top-of-the-line current sensor.

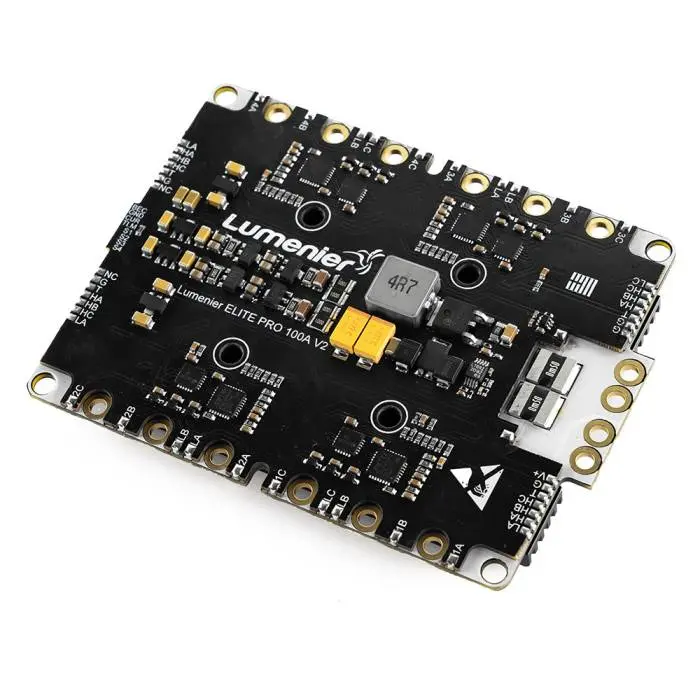

HEAVY DUTY COPPER TRACES

One of the biggest features of this ESC is the heavy-duty copper traces (8oz) which can support extreme current. Additionally, the ESC PCB is 2mm thick and layered on a 2nd PCB of 1mm for a total of 3mm. More copper along with the included aluminum heatsink allows you to push more power to your drone.

BENEFITS OF BLHELI_32 FIRMWARE ON 32-BIT ESC

32-bit processors run faster than 8-bit, at which we can expect better performance from the new 32-bit ESCs. Faster input signals with lower latency and higher update rate would be possible, such as Dshot1200 or even faster protocols! (Read about DSHOT) (Read about DSHOT1200)

The 32-bit platform also allows more functionality and features that simply weren’t possible on 8bit ESCs, such as:

• Improved direction change in the Bidirectional mode
• Auto-timing for higher efficiency and reliability
• Configuring from FC using DShot commands
• Adjustable “Brake on Stop” force
• Programmable PWM frequency
• Voltage/Current limiting
• RGB LED control
• ESC Telemetry

• Supports: Dshot300, Dshot600, Dshot1200, MultiShot, OneShot, and normal PPM 1-2us.

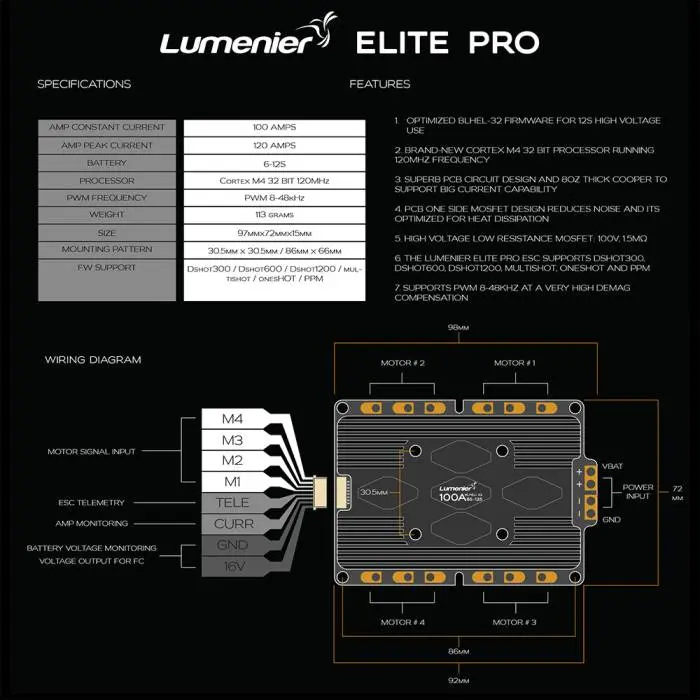

• Mounting Patterns: 30.5×30.5m / 86x66mm
• Processors: Cortex M4 32-Bit 120Hz
• 16V BEC onboard to power flight controller
• Dimensions: 98mmx72mmx15mm
• Continuous Current: 100A x4 ch
• Peak Current: 120A x4 ch
• Supports: PWM 8-48kHz
• Firmware: BLHeli_32
• Mosfet: 100V, 1.5mΩ
• Voltage: 6-12S
• Weight: 113g

• Download the User Manual here
• Download the latest BLHeli_32 Configurator HERE.
• Download the BLHeli_32 User Manual HERE.

Looking to design your aircraft or drone using the Lumenier 100A 6-12S 4in1 ESC?

• Download the .STEP 3D Design file here
• Download the .STL 3D Design file here

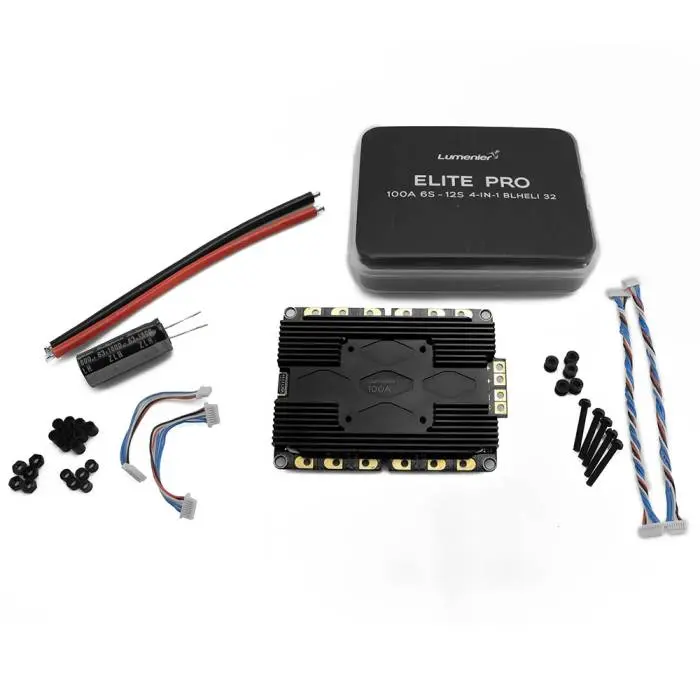

• 1x Lumenier ELITE PRO 100A V2 6-12S BLHeli_32 4-in-1 ESC
• 2x 8pin JST Breakout Cable (short 70mm)
• 2x 8pin JST Breakout Cable (long 120mm)
• 2x 10AWG 200°C Wire – Black / Red 160mm
• 1x 63V 1800uF Capacitor
• 5x M3 Rubber Grommets
• 1x Plastic Hardware set (M3 spacers, screws, nuts)
